Epson PowerLite D6150 Multimedia Projector
- Image Display
- Projector Display System 3LCD, 3-Chip Technology
- Display NTSC: 480 lines
- PAL: 576 lines
- (depends on observation of the multi-burst pattern)
- Native Resolution 1024 x 768
- Number of Pixels 786,432 pixel (1024 x 768) x 3 LCDs
- Brightness 3500 Lumens (ISO 21118 Standard)
- Brightness Uniformity: 89%
- Colors 16.7 million colors
- Contrast Ratio 2000:1
- Aspect Ratio 4:3
- System NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
- HDTV Compatibility 480i, 576i, 480p, 576p, 720p, 1080i, 1080p
- Lens System
- Lens F-number: 1.51 - 1.99
- Focal Length: 18.2 - 29.2mm
- Focus/Zoom Adjusting Powered focus / Manual zoom
- Zoom Ratio: Optical zoom 1.0 - 1.6
- Recommended Projection Size 30 - 300" (762 - 7620mm)
- Throw Ratio 1.38 - 2.24
- Scanning Frequency Horizontal: 15 KHz to 92 KHz
- Vertical: 50 Hz to 85 Hz
- Clock Pixel clock: 13.5 MHz to 162 MHz (up to UXGA 60 Hz)
- Features
- Keystone Correction Horizontal: ±30 degrees (Manual)
- Vertical: ±30 degrees (Manual)
- Ceiling Mountable Yes
- Rear Screen Projection Yes
- Projection Tilt Option Yes
- Built-in Speaker 5W

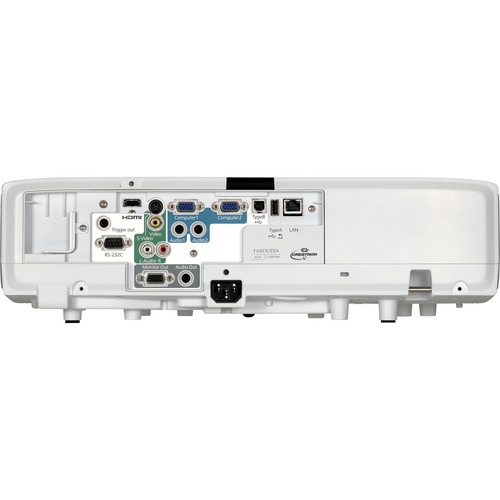

- Inputs/Outputs HDMI x 1
- Computer: D-sub 15 pin x 2
- Monitor-out: D-sub 15 pin x 1
- Video: RCA x 1
- S-Video x 1
- Network: RJ-45 x 1, 100Mbps
- Wireless LAN: Optional 802.11 a/b/g/n
- Serial: RS-232c
- USB: Type-A x 1, Type-B x 1
- Audio-in: Mini stereo x 2
- Audio-in: RCA (L and R)
- Audio out: Mini stereo x 1
- Trigger out: 3.5mm x 1
- General
- Lamp (Bulb) Lamp Type: 230W UHE E-TORL
- Lamp Life: Eco-mode: Up to 6000 Hours
- Normal mode: Up to 4000 Hours
- Fan Noise Eco-mode: 33 dB
- Normal mode: 39 dB
- Remote Control Features: Power, input signal selection, computer, video, A/V mute, freeze, user, ID num, auto, aspect, color mode, page up and down, E-zoom, volume, help, menu, enter, esc and pointer functions
- Operating Angle:
- Rear: Right / Left: ±30 degrees
- Upper / Lower: -10 - +70 degrees
- Front: Right / Left: ±60 degrees
- Upper / Lower: +10 - +80 degrees
- Operating Distance: 19.6' (6 m)
- Power Requirements 100 - 240 V ±10%, 50/60 Hz
- Power Consumption Normal mode: 328W Eco-mode: 242W Communication on: 6W Communication off: 0.3W
- Security Security cable hole
- Kensington lock provision
- Operating Temperature 32 to 104° F (0 to 40° C)
- Dimensions (WxDxH) Including feet: 17.7 x 10.8 x 5.2" (449.6 x 274.3 x 132.1mm)
- Excluding feet: 17.7 x 10.8 x 4.5" (449.6 x 274.3 x 114.3mm)
- Weight 9.7 lb. (4.4kg)
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- With 3500 ISO lumens and a contrast ratio of 2000:1 the XGA-resolution Epson PowerLite D6150 Multimedia Projector has the projection power to present large images in venues where ambient light would be a problem for lesser projectors.
- However, it's a gentle giant that works and plays well with others. It's got an international 100 - 240 V AC 50/60 Hz power supply and it can handle NTSC, PAL and SECAM TV signals. It can also project 720p, 1080i and 1080p high definition signals. And those signals will stay in pristine digital form from the source thanks to the D6150's HDMI port.
- All of those signals benefit from the bright and high contrast Epson 3LCD projector panel. 3LCD delivers clear and vibrant images so true to life you may not believe your eyes.
- The D6150 is also PC friendly. You can plug your PC into one of the D6150's two USB ports and use it to project a slide show or presentation. This projector is also equipped to use your local network (LAN) in a wired (via its RJ45 jack) configuration or optional wireless (Wi-Fi) via its 802.11 a/b/g/n capability. You can make presentations from any PC on your network and you can manage, monitor and control the projector using SNMP (Simple Network Management Protocol). You can send important announcements like rescheduling information or weather updates to a fleet of D6150s. They, in turn can email you to alert you to faults (temperature too high, lamp reaching the end of its life and so on).
- Dust-Resistant Design Engineered with a robust, dust-resistant design, featuring advanced technology and networking capabilities, the Epson D6150 is the perfect solution for higher education lecture halls and corporate conference rooms alike. With its unprecedented exhaust vent shutter, cable locks and long filter/lamp life, the D6150 gives you added peace of mind. Cutting-edge technology such as the split-screen function, HDMI input and advanced networking features make your investment a future-proof one. The PowerLite D6150 features an innovative design with a glass cover in front of the lens and enhanced dust-resistance around the lens levers, offering added protection against dust and reduced maintenance costs. It also features exhaust vent shutters for protection against dust or bugs when not in use. In addition, a cable cover is included to protect the cables and prevent anyone from tampering with them
- World's First Vent Shutter Projectors typically don't have exhaust vent shutters, so dust and bugs can enter into the projector, reducing the life of the equipment. With the D6150 series vent shutter, your projector is protected
- Cable Cover The D6150 protects connectors from dust and other harmful elements with its convenient cable cover. And, it provides a sleek, finished look by hiding unsightly cables
- Two Cable Locks For added security, the D6150 includes two cable locks that allow you to secure the power and HDMI cables to the projector, thereby preventing others from tampering with the equipment
- Long-Life E-TORL Lamp The innovative E-TORL lamp lasts up to 6000 hours. The special E-TORL design minimizes both light diffraction and light leakage, providing you the ultimate in lamp longevity
- 10000-Hour High-Efficiency Filter This high-efficiency filter was designed to protect the optical engine, lamp and electronics from small dust particles that can enter any projector. It has a recommended 10000-hour filter cleaning schedule and can capture 99.5%5 of dust particles, thanks to its electro-statically charged, pleated, expanded design
- Covered Lens The glass cover in front of the lens protects it from being broken and from dust and other elements.
- Lens Lever Cover with Seal Offering added protection from harmful elements, the D6150 offers a unique design, with no gaps around the focus and zoom levers
- World Renowned Projectors Epson understands business and education and has a solution no matter what your situation. Built with image quality and reliability in mind, Epson projectors enhance communication and inspire collaboration, while offering a low total cost of ownership. From long-throw projectors to ultra-short-throw and all-in-one solutions, Epson has the model made for you
- 3LCD Technology For quality and color that's beyond amazing
- 3 chips for full-time, vibrant color
- 25% less electricity required per lumen of brightness when compared to 1-chip DLP projectors
- Over 20 years of road-tested reliability built into every projector
- Faroudja DCDi Cinema Faroudja DCDi Cinema is a video enhancement technology, used primarily for film viewing that produces exceptional image quality without introducing artifacts. Faroudja developed DCDi (Directional Correlational Deinterlacing) to eliminate jaggy images by using a unique algorithm. This algorithm, in combination with the technology's decoding, deinterlacing and enhancement features, won an Emmy Award from the National Academy of Television Arts and Sciences in 2001
- Color Light Output For optimum image quality and performance, the projector you choose should offer equal levels of color and white light output
- When the two measurements are not identical, images do not look balanced. Whites may be brighter, making the colored areas look dull and flat
- The combination of color richness (Color Light Output) and brightness (White Light Output) is as critical as the combination of bass and treble would be when purchasing audio equipment
- CLO The Color Light Output (CLO) spec measures Red, Green and Blue, each on a 9-point grid, applying the same method used in the ISO 21118 standard for measuring White Light Output
- Amazing Color and White Light Output The PowerLite D6150 delivers 3500 lumens of color light output and 3500 lumens of white light output. For today's color-rich, multimedia content, users want a projector that delivers both optimum white and color imagery. That's why the industry has developed a new metric called Color Light Output
- Split-Screen Feature Project two images (video or still) side-by-side from two different sources simultaneously. Choose from three layout options including a 50/50% split-screen, a layout with the main image on the left and a layout with the main image on the right. You can swap the images, chose the source for the audio and even display closed captioning if the source signal includes it
- HDMI Input HDMI input for high-definition video and audio
- HDMI digital connectivity - delivers both audio and brilliant HD video content with just one cable
- Compatible with the latest laptops, Blu-ray and media players
- Future-proof for digital content
- PC-Free Slideshow Just plug your USB drive into the USB port, and you are ready to display your images
- Compatible with the following file formats: JPG/BMP/GIF/PNG
- Create a slideshow using files on the USB drive
- Optional Wireless Connectivity with 802.11n Quickly connect to a wireless infrastructure (network) via a wireless LAN module
- Make wireless presentations with an ad hoc (peer-to-peer) wireless connection using the Quick Connect Wireless USB key
- Document Camera Option Partner your projector directly with an Epson DC-06 document camera. You can simply connect it through your projector's USB port (Type A) and start making more effective presentations and lessons without needing a computer
- Long-Life Lamp This high-efficiency lamp lasts up to 4000 hours in normal mode and up to 6000 hours in Eco-mode. It can be replaced quickly and easily, without having to uninstall the projector from the ceiling
- Long-Life Electrostatic Air Filter This innovative filter was designed to protect the optical engine, lamp and electronics from small dust particles that can enter any projector. It has a recommended 10000-hour filter cleaning schedule4 and can capture particles as small as three microns, due in part to its pleated, expanded design
- Built-In Closed Captioning Accommodates those with hearing impairments
- Delivers important content when audio broadcasting is not preferred
- Helps save money - no need to pay for an additional decoder and its installation
- Effective and easy to use - easily enabled or disabled through the projector remote or menu
- Epson's EasyMP Monitor Tool If you are searching for a solution that gives you control over your time, Epson network projectors with EasyMP Monitor capabilities can help. Epson network projectors contain built-in remote access, with no licensing fees added, to Epson monitor software. These features also give you added control, and the ability to troubleshoot and monitor all Epson network projectors from any computer over a wired or wireless Ethernet network.
- Additional features to assist administrators/help desk
- Remote access and control through the network
- Remote monitoring of up to 1024 Epson networked projectors
- View status, including input sources, power on/off, lamp life hours and more
- Preventative maintenance features including temperature levels and error alerts
- Schedule filter and lamp timer settings
- E-mail notification (SMTP) to send alerts
- Network Projection - Content Over IP You can use EasyMP Network Projection to project your computer screen through the projector, via a network, for effective meetings, presentations and digital signage applications. You can use either wired or high-security wireless LAN connections and project the same or up to four different images on up to four projectors, or display a panoramic image
- Full Networkability Epson network projectors can also be accessed from your browser via an internal web page. Whether you assign a static IP address or enable DHCP, the projector becomes accessible once it's integrated in your network. The internal web page lets you control items such as network configuration, projector settings and e-mail alerts
- Message Broadcasting This innovative feature enables you to broadcast customized images/alerts over the network for announcements or instructions. Messages can be sent to up to 1024 projectors simultaneously and will overwrite the current screen content if the projector is being used, unless this function is disabled by the presenter. If the projector is off, message broadcasting will turn the projector on and then display the message
- Quick Corner Fits the image to your screen perfectly. You can move any of the four corners of an image independently at setup, using the remote control to adjust each corner for a perfectly rectangular picture
- 1.6x optical Zoom Enlarge images 40% more than competitive models that have a 1.2x optical zoom
- Maximizes space by enabling closer positioning of the projector to the screen
- Innovative Horizontal Keystone Correction New, innovative horizontal keystone allows for unique positioning of the projector
- Horizontal (+/- 30 degrees) keystone correction for the ultimate in positioning flexibility
- Project images from a u-shaped tabletop, without having to move the table or put a stand in the center
- When the projector is placed off center, the presenter can stand in front of the screen without blocking the image
|
|
|
|
|
|
|
